Lyte 10 Wall Door Universal

10-Device Wall Mounted AC Charging Cabinet for Laptops, Tablets & Chromebooks up to 14″ – Vertical

SKU:

LYTE10WDUBL

RANGE:

LYTE

Product description

The Lyte 10 Wall Door Universal charges 10 devices up to 14″ screen size – Chromebooks, laptops and tablets (including protective cases).
The narrow wall-mounted design has an overall depth of 21cm / 8.3″ to save precious floor space in classrooms, hospital wards, warehouses and other busy environments.
It is built for Health with an ergonomic, easy to clean design and no cooling fan to prevent the spread of infection.
This unit is built to Last with high-density materials, components and construction processes to withstand the busiest environments such as education, healthcare, retail, industrial and commercial.
It has maximum security & safety with a lock that includes a 6 plate lever activation system and separate lockable power compartment.
With Support for Life with Lifetime Warranty (5 years electrical), shipped fully assembled.

Product summary

Range

LYTE

Type of device

Chromebook, Laptop

Device screen size

Up to 14"

Number of devices

Up to 10

Charge & Sync

Charge only

Type of charging

AC

Type of unit

Wall unit

Full product information

Product features

Devices sit in slanted steel shelves angled to enable laptops, tablets and Chromebooks can be picked up and returned easily
Each compartment fits up to a 14″ tablet, laptop or Chromebook with enough room for most protective cases
Check the Compartment Dimensions in Technical Specifications below

Charges 10 devices up to 14″ screen size – laptops, Chromebooks and tablets
Device adaptors plug into 1 x 10-way power strip designed and manufactured in-house
Simultaneous charging of all 10 devices to ensure devices are fully charged as fast as possible
Sockets accommodate larger adaptors and plugs without blocking adjacent outlets
IEC socket with 1.8m / 6ft power cord

Feature not available

Cable clip portholes located in the side of each device storage shelf to ensure cable is locked into position
Cable clip portholes feed cables from side power compartment to front device compartment, preventing cables being removed with the device
Individual pockets for AC adaptors to secure cables in place, organised and free from damage with ventilation to prevent overheating
AC pockets manufactured from flexible ABS to allow users to bend open the pocket allowing easy access during set-up and maintenance

Perfect for use in busy areas such as classrooms, hospital wards, staff rooms, industrial and commercial buildings where space is limited
Built to commercial grade furniture standards, passing tests for durability, stability and weight bearing loads for high impact usage
Top surface overhangs at the rear to allow the top surface to sit flush against the wall but still allowing fresh air to circulate through the back of the unit
Wall hanging kit (supplied) includes all components need to fix unit securely with instructions
Tested to comply with Healthcare Infection Control Procedures to ensure unit can be cleaned thoroughly, according to healthcare guidelines, preventing the spread of infection

Separate secured power compartment for ultimate safety and security
Isolated power compartment is secured with a 16-gauge steel cover panel, fixed with security screws, to conceal the electrical components and to prevent loss or damage of cables

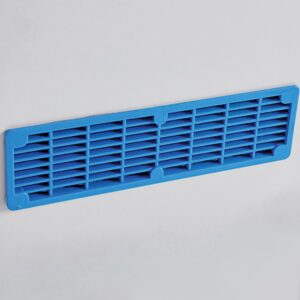

Silent ventilation system includes side and rear vents to keep devices cool with constant air circulation without the need for a noisy fan that can also spread germs
Key locking system, tested by an independent locksmith, includes 6 plate lever activation system and double-sided key with two sets of teeth, making the lock more durable, impossible to pick and substantially increasing security
Inset door handles prevent protruding parts eliminating breakages
Safety tested and certified by the independent Underwriters’ Laboratory (UL)

Ships fully assembled with wall fixing kit supplied
Large doors open wide and concealment panel removes for easy access and fast set up
Instruction Booklet supplied with technical support via phone, email or 24/7 live chat on hand

Technical specifications

W660 x D205 x H905 mm / 26″ x 8.1″ x 35.6″
W400 x D250 x T47 mm / 15.7″ x 9.8″ x 1.9″
Feature not available
UK – 240 volts / USA & Canada – 120 volts
50 / 60 Hz
1.8 m / 6 ft

Warranty and certifications

Lifetime Warranty (5 Year Electrical)
CE Certified | EN 62368-1:2014
CE Certified | EN 62368-1:2014
CAN/CSA C22.2 No. 62368-1:2014
UL 62368-1:2014
ISO 9001 & ISO 14001
All products are tested to the highest global standards. Safety testing is of paramount importance to LapCabby. We do not release any product unless it has been thoroughly tested and certified, including checks on electrical components, materials, construction, and other integral parts. Safety testing covers normal operating conditions as well as potential faults, misuse, temperature fluctuations, fire hazards, electrical shock, and injury risks.

Support documents

Spec sheet

Please download the spec sheet of this product.

Instruction manual

Please download the instruction manual of this product.

Product warranty

Please download the warranty of this product.

Product video

Product video currently not available
  • User Code is any 6 digit single entry code that can be input to lock and unlock a single compartment, once unlocked the lock will reset ready for the next user
  • Technician Code is a factory default code to be reset upon first use to ensure security, this code allows access to any compartment if a User Code is forgotten
  • Master Code is a factory default code for each lock that will restore the digital lock back to factory its setting, removing access using any previous codes installed
