Lyte 10 Single Door Mobile Phone USB
10-Handheld Device Static USB Charging Cabinet for smartphones, mobile phones and other handheld USB devices up to 7″ – Horizontal
SKU:
LYT10SDMPUSBBL
RANGE:
LYTE
Product description
The Lyte Single Door Mobile Phone USB charges 10 devices up to 7″ screen size – smartphones, mobile phones and handheld USB devices (including protective cases) via a 10 port USB A Hub.
It has individual device compartments store devices horizontally within a compact footprint.
This unit delivers high-speed charge at the optimum rate.
It never overcharges as it detects when the device battery is full providing trickle charge.
Equivalent to 10 x 10.5W USB A Charging Ports saving you space and power consumption, replacing extension cables and power sockets with one cable into the wall
Provides maximum security & safety with a lock that includes a 6-plate lever activation system and separate lockable power compartment.
With Support for Life with Lifetime Warranty (5 years electrical), shipped fully assembled.
Product summary
| Range | LYTE |
|---|---|
| Type of device | Mobile phone |
| Device screen size | Up to 7" |
| Number of devices | Up to 10 |
| Charge & Sync | Charge only |
| Type of charging | USB Type A |
| Watts per port | USB-A up to 10.5W |
| Type of unit | Static unit |
Product features

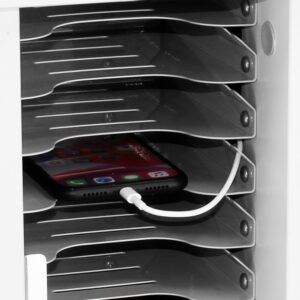

Devices sit horizontally within individual compartments to enable the devices to be picked up and returned easily
Each compartment fits up to a 7″ mobile or smartphone with enough room for most protective cases
Check the Compartment Dimensions in Technical Specifications below
Charges 10 devices up to 7″ screen size – smartphones, mobile phones, and handheld USB devices (including protective cases)
Auto-detects attached devices individually and automatically adjust the current output to the highest level permitted by the device manufacturer and USB specifications
Once fully charged, trickle charging will commence at a rate equal to its self-discharge rate, enabling the battery to remain at 100%
IEC socket/inlet with 1.8m/6 ft power cord
OPTIONAL Apple Lightning USB or 3-in-1 cable (USB Type-C, Lightning & Micro USB) available on request
Feature not available
USB A ports are located in the locked side compartment, preventing cables being removed from the front device compartment
Cables feed from back power compartment to front device compartment via cable channels with secure anchor points, preventing cables being removed with the device
Individual velcro cable fasteners secure cables in place, organised and free from damage
This unit accepts the following straight cable connectors: USB A to USB C, USB A to Micro USB and USB A to Apple Lightning. Not recommended for large connectors such as the Apple 30-pin dock connector or angled connectors
Small and compact dimensions make it perfect for use in busy areas where space is limited such as classrooms, hospital wards, staff rooms, industrial and commercial buildings
Front door opens 270 degrees to allow full and unrestricted access to devices
Replaces the need for multiple chargers, power sockets and extension cables, charging all 10 USB devices with a single mains cable
Weight bearing non-marking feet are fitted to the base of the unit to ensure air circulation and easy cleaning
Tested to comply with Healthcare Infection Control Procedures to ensure unit can be cleaned thouroughly, according to healthcare guidelines, preventing the spread of infection
Built to commercial grade furniture standards, passing tests for durability, stability and weight bearing loads for high impact usage
Isolated power compartment to conceal the electrical components and to prevent loss or damage of cables
Key locking system front and rear, tested by an independent locksmith, includes 6-plate activation and double-sided key with two sets of teeth, making the lock more durable, impossible to pick and substantially increasing security
Silent ventilation system includes side and rear vents to keep devices cool with constant air circulation without the need for a noisy fan that can also spread germs
Inset door handles prevent protruding parts eliminating breakages
Safety tested and certified by the independent Underwriters’ Laboratory (UL)
Ships fully assembled with L-shaped feet already fitted
Instruction Booklet supplied with technical support via phone, email or 24/7 live chat on hand
Device protection
Charging
Syncing
Cable management
Practicality
Security and protection
Set up
Device protection
Devices sit horizontally within individual compartments to enable the devices to be picked up and returned easily
Each compartment fits up to a 7″ mobile or smartphone with enough room for most protective cases
Check the Compartment Dimensions in Technical Specifications below
Charging
Charges 10 devices up to 7″ screen size – smartphones, mobile phones, and handheld USB devices (including protective cases)
Auto-detects attached devices individually and automatically adjust the current output to the highest level permitted by the device manufacturer and USB specifications
Once fully charged, trickle charging will commence at a rate equal to its self-discharge rate, enabling the battery to remain at 100%
IEC socket/inlet with 1.8m/6 ft power cord
OPTIONAL Apple Lightning USB or 3-in-1 cable (USB Type-C, Lightning & Micro USB) available on request
Syncing
Feature not available
Cable management
USB A ports are located in the locked side compartment, preventing cables being removed from the front device compartment
Cables feed from back power compartment to front device compartment via cable channels with secure anchor points, preventing cables being removed with the device
Individual velcro cable fasteners secure cables in place, organised and free from damage
This unit accepts the following straight cable connectors: USB A to USB C, USB A to Micro USB and USB A to Apple Lightning. Not recommended for large connectors such as the Apple 30-pin dock connector or angled connectors
Practicality
Small and compact dimensions make it perfect for use in busy areas where space is limited such as classrooms, hospital wards, staff rooms, industrial and commercial buildings
Front door opens 270 degrees to allow full and unrestricted access to devices
Replaces the need for multiple chargers, power sockets and extension cables, charging all 10 USB devices with a single mains cable
Weight bearing non-marking feet are fitted to the base of the unit to ensure air circulation and easy cleaning
Tested to comply with Healthcare Infection Control Procedures to ensure unit can be cleaned thouroughly, according to healthcare guidelines, preventing the spread of infection
Built to commercial grade furniture standards, passing tests for durability, stability and weight bearing loads for high impact usage
Security and protection
Isolated power compartment to conceal the electrical components and to prevent loss or damage of cables
Key locking system front and rear, tested by an independent locksmith, includes 6-plate activation and double-sided key with two sets of teeth, making the lock more durable, impossible to pick and substantially increasing security
Silent ventilation system includes side and rear vents to keep devices cool with constant air circulation without the need for a noisy fan that can also spread germs
Inset door handles prevent protruding parts eliminating breakages
Safety tested and certified by the independent Underwriters’ Laboratory (UL)
Set up
Ships fully assembled with L-shaped feet already fitted
Instruction Booklet supplied with technical support via phone, email or 24/7 live chat on hand
Technical specifications
W225 x D440 x H360 mm / 8.9″ x 17.3″ x 14.2″
W130 x D205 x T30mm / 5.1” x 8” x 1.2”
Feature not available
UK – 240 volts / USA & Canada – 120 volts
50 / 60 Hz
1.8 m / 6 ft
Unit dimensions
Device compartment size
AC pocket size
Voltage compability
Input frequency
Input cord length
Unit dimensions
W225 x D440 x H360 mm / 8.9″ x 17.3″ x 14.2″
Device compartment size
W130 x D205 x T30mm / 5.1” x 8” x 1.2”
AC pocket size
Feature not available
Voltage compability
UK – 240 volts / USA & Canada – 120 volts
Input frequency
50 / 60 Hz
Input cord length
1.8 m / 6 ft
Warranty and certifications
Lifetime Warranty (5 Year Electrical)
CE Certified | EN 62368-1:2014
CE Certified | EN 62368-1:2014
CAN/CSA C22.2 No. 62368-1:2014
UL 62368-1:2014
ISO 9001 & ISO 14001
Warranty
UK Certification
EU Certification
CAN Certification
USA Certification
ISO Certification
Warranty
Lifetime Warranty (5 Year Electrical)
UK Certification
CE Certified | EN 62368-1:2014
EU Certification
CE Certified | EN 62368-1:2014
CAN Certification
CAN/CSA C22.2 No. 62368-1:2014
USA Certification
UL 62368-1:2014
ISO Certification
ISO 9001 & ISO 14001
All products are tested to the highest standard worldwide.
Safety testing is a high priority to LapCabby. We do not release any products unless the it has been completely tested and certified including electrics, materials, construction and components.
Safety testing includes the normal operating conditions of the product plus testing for faults, misuse, temperature, fire, risk, electric shock and injury.
Support documents
Spec sheet
Please download the spec sheet of this product.
Instruction manual
Please download the instruction manual of this product.
Product warranty
Please download the warranty of this product.
